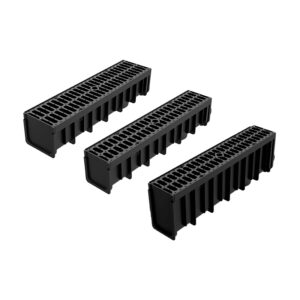

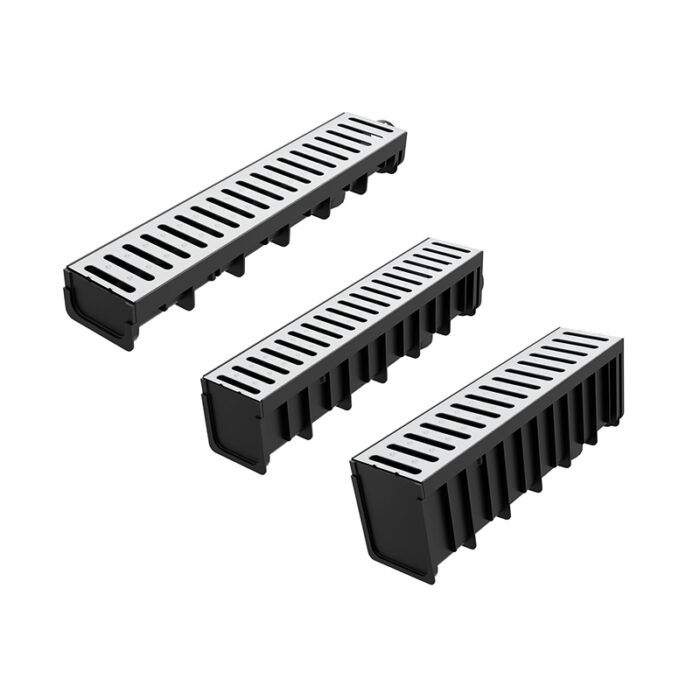

HDPE 1.5T TECHNICAL DRAIN
Specifications:
Material : Base Frame : HDPE
Thickness : Base Frame : 3 mm
Grating Channel: HDPE
Grating Channel: 10 mm
Frame Gap : 20 mm (Can be customized)
Flow Rate : 500 Liters / Minute
Weight : 10 Kgs.
| DESIGN NO. | Length Options (mm) |
Width | Flow Rate (Ltr/Mnt) |
Height (mm) |
Load Class (MT) |
|---|---|---|---|---|---|
| DG-HDPE-AL-01 | 500 | 100 | 300 | 50 | 1.5 |
| DG-HDPE-AL-02 | 500 | 125 | 375 | 100 | 1.5 |
| DG-HDPE-AL-03 | 500 | 150 | 450 | 150 | 1.5 |
| DG-HDPE-AL-04 | 500 | 125 | 500 | 150 | 1.5 |
